Manufacturing test

Material: Mild SteelUsage/Application: IndustrialSurface Finishing: PolishedColor: GreyCountry of Origin: Made in IndiaOur pump shafting products are manufactured using high-quality materials to ensure superior strength, durability, and long service life. Designed for industrial applications, these shafts offer excellent stiffness along with high resistance to corrosion and wear. Widely used in various pumping systems, the shafting is engineered to deliver reliable performance under demanding operating conditions. Available with a polished finish, the products are precisely crafted to meet industry standards and customer requirements.

Ss 410 Pump Shaft

INR 3500

VIEW DETAILS

Bar Drawing Machines

Bar Straightening Machine AS-2

INR 700000 INR 770000
You Save 9.09%

VIEW DETAILS

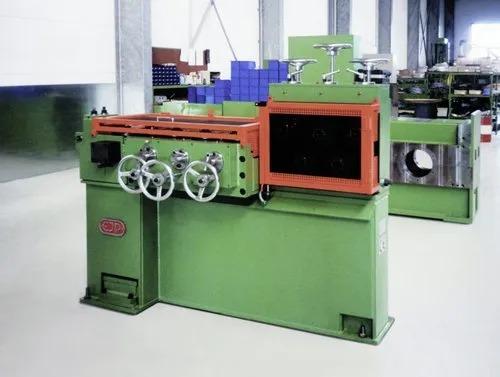

Gauge 18 SWGBrand ALANKAR UDHYOGSuitable For Mild SteelAutomation Grade Semi-AutomaticDesign StandardPower Consumption 2 kWUsage/Application IndustrialCountry of Origin Made in IndiaWe can provide good quality of Bar Straightening Machine AS-3.

Bar Straightening Machine AS-3

VIEW DETAILS

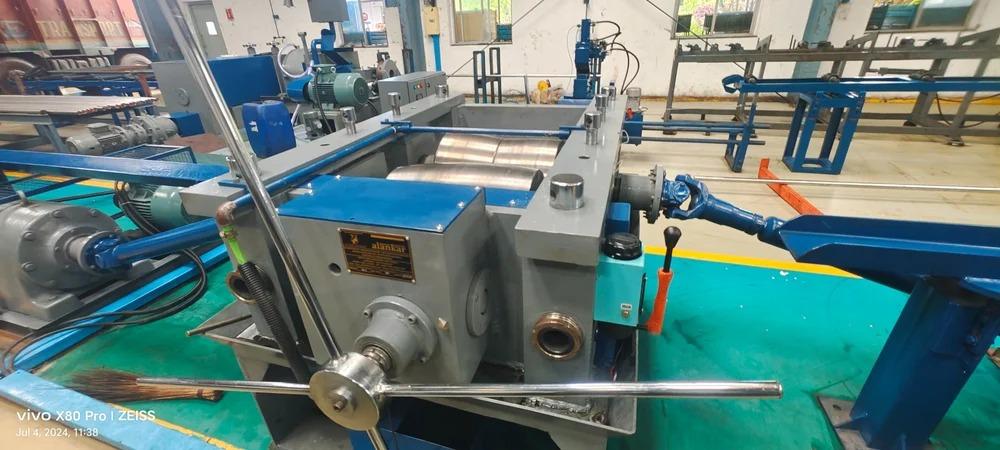

Gauge 22 SWGAutomation Grade Semi AutomaticUsage/Application IndustrialSuitable For Stainless SteelDesign CustomizedCountry of Origin Made in IndiaThe 2-roll type uses over-and-under roller to straighten and polish the bar.Roller pressure is automatically adjusted.

Two Roll Straightening Machine

VIEW DETAILS

Our customers can avail from us a comprehensive range of Bar Straightening Machines which are manufactured using quality raw material. These machines are robust in construction and ideal for various industrial applications.Gauge 22 SWGUsage/Application Bar StraighteningAutomation Grade Semi AutomaticSuitable For Stainless SteelCountry of Origin Made in IndiaThe Machine is used to straighten the bending bars created in Rolling process. It can also able to straighten the bars having hook bend or snake bend

Stainless Steel Bar Straightening Mach

VIEW DETAILS

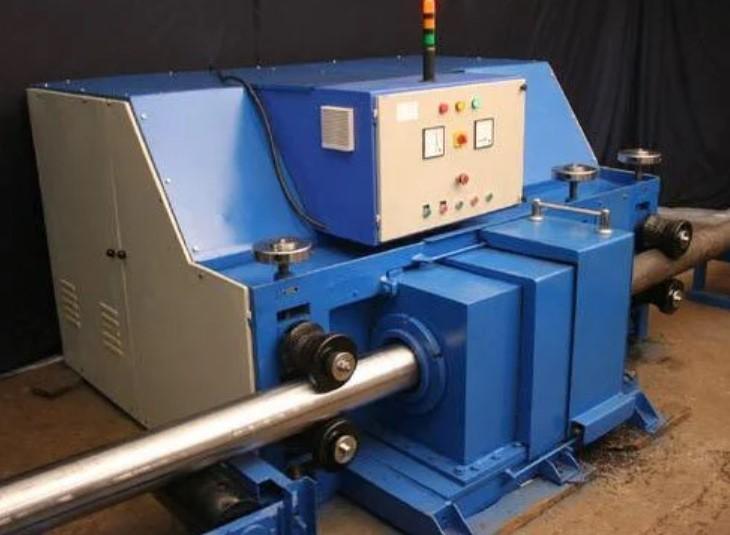

Model A-3Automatic Grade Semi-AutomaticLayout VerticalAutomation Grade Semi-AutomaticProduct Type Turning MachineMax Bar Work Capacity 150mmI Deal In New OnlyOur company holds immense experience in this domain and is involved in presenting an enormous quality range of PSteel Bar Turning Machine.Specifications:Specification A-3Turning dia (max) 100 to 150 mmChuck size 500 mmBar capacity (max) 150 mmSpindle speed standard 700-1100Spindle tools feeding power 25. 00 / 5. 00 hpSpindle tools 3 tool

Bar Turning Machine A3

INR 1500000

VIEW DETAILS

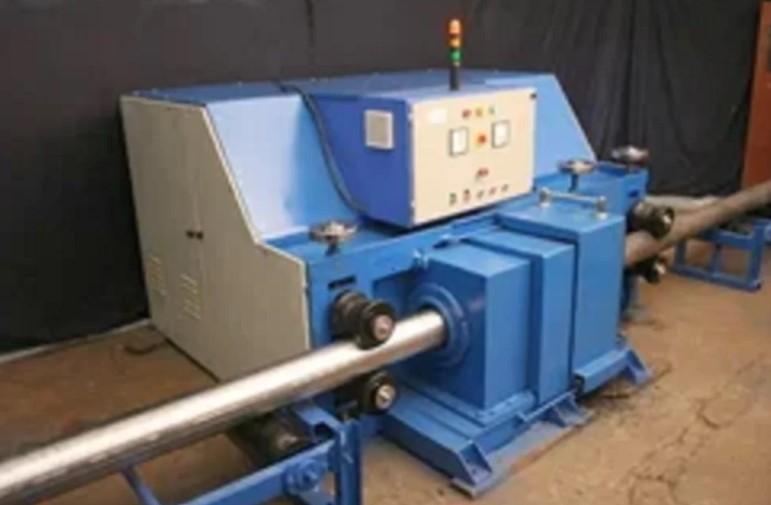

Model A-4Automation Grade Semi-AutomaticMax Turning Diameter 150 to 200 mmI Deal In New OnlyChuck Size 750 mmBar Capacity 200mmSpindle Speed Standard 600-1000Spindle tools feeding power 30.00/5.00 hpOur association is broadly known for maintaining the quality in offering Bar Turning Machine.Product Details:Head Stock :This is a rigid steel body containing a revolving main chuck driven through v belts from the main motor, two cutter head is fixed to the main spindle. The head is designed to hold a cutting tool and the spindle speeds can be varied by means pulley.Feed Gear Box :this is also a rigid steel body. The feed rollers are operated by a motor helical gear. The rollers feed the bar against the collate head. The feed rate of the bar is varied through gear box. All the shafts are mounted on bearings helical gears are grease lubricated. Hand oil.Bed : this is a steel base on which the feed gear box and head stock assemblies are mounted. The main motor is fixed on the left rear wall of the bed and feed gear box motor on the right rear side of the bed.Cutter Head : this is a cast steel part. To thiffs, (hchcr) two carbide tool are fixed. The entire assembly is bolted to a face plate which in turn is threaded (clock wise) to the main spindle. The cutter head check will rotate against the main spindle while the bar is fed longitudinally.Input & Output Carriages: for supporting and preventing the rotation of the bar, input and output roller are provided.Specifications:Specification A-4Turning dia (max) 150 to 200 mmChuck size 750 mmBar capacity (max) 200 mmSpindle speed standard 600-1000Spindle tools feeding power 30. 00 / 5. 00 hpSpindle tools 3 tool

Bar Turning Machine A-4

INR 1850000

VIEW DETAILS

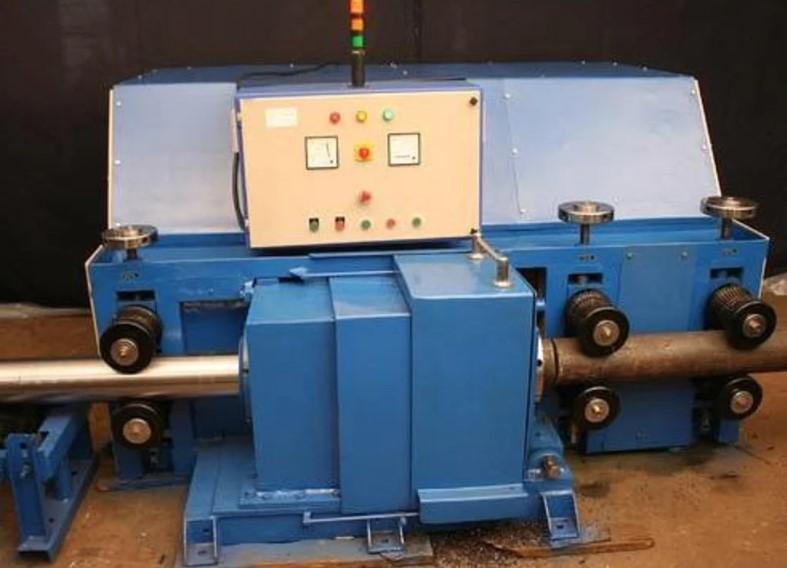

Model A-2Automatic Grade Semi-AutomaticAutomation Grade Semi-AutomaticMax Turning Diameter 50 to 100mmMax Bar Work Capacity 100mmSpindle Torque 600-1300I Deal In New OnlyA wide range of Turning Machine is offering by us according to the demand of the clients as well as their requirements to satisfy them completely.Specifications:Specification A-2Turning dia (max) 50 to 100 mmChuck size 400 mmBar capacity (max) 100 mmSpindle speed standard 800-1300Spindle tools feeding power 15. 00 / 3. 00 hpSpindle tools 2 tool

Bar Turning Machine A-2

INR 950000

VIEW DETAILS

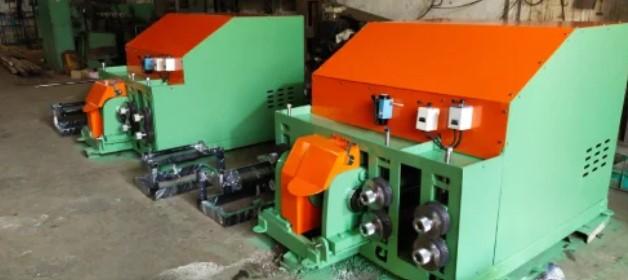

Model A-1Automatic Grade Semi-AutomaticAutomation Grade Semi-AutomaticCapacity 50mmI Deal In New OnlyChuck Size 250mmTurning Diameter 20 to 50 mmSpindle Speed Standard 900-1500Being a reputed company in the industry, this is our responsibility to offer standard quality Metal Bar Turning Machines. Specifications:Specification A-1Turning dia (max) 15 to 50 mmChuck size 250 mmBar capacity (max) 50 mmSpindle speed standard 900-1500Spindle tools feeding power 7. 5 / 2. 00 hpSpindle tools 2 tool

Metal Bar Turning Machine A1

INR 700000

VIEW DETAILS
